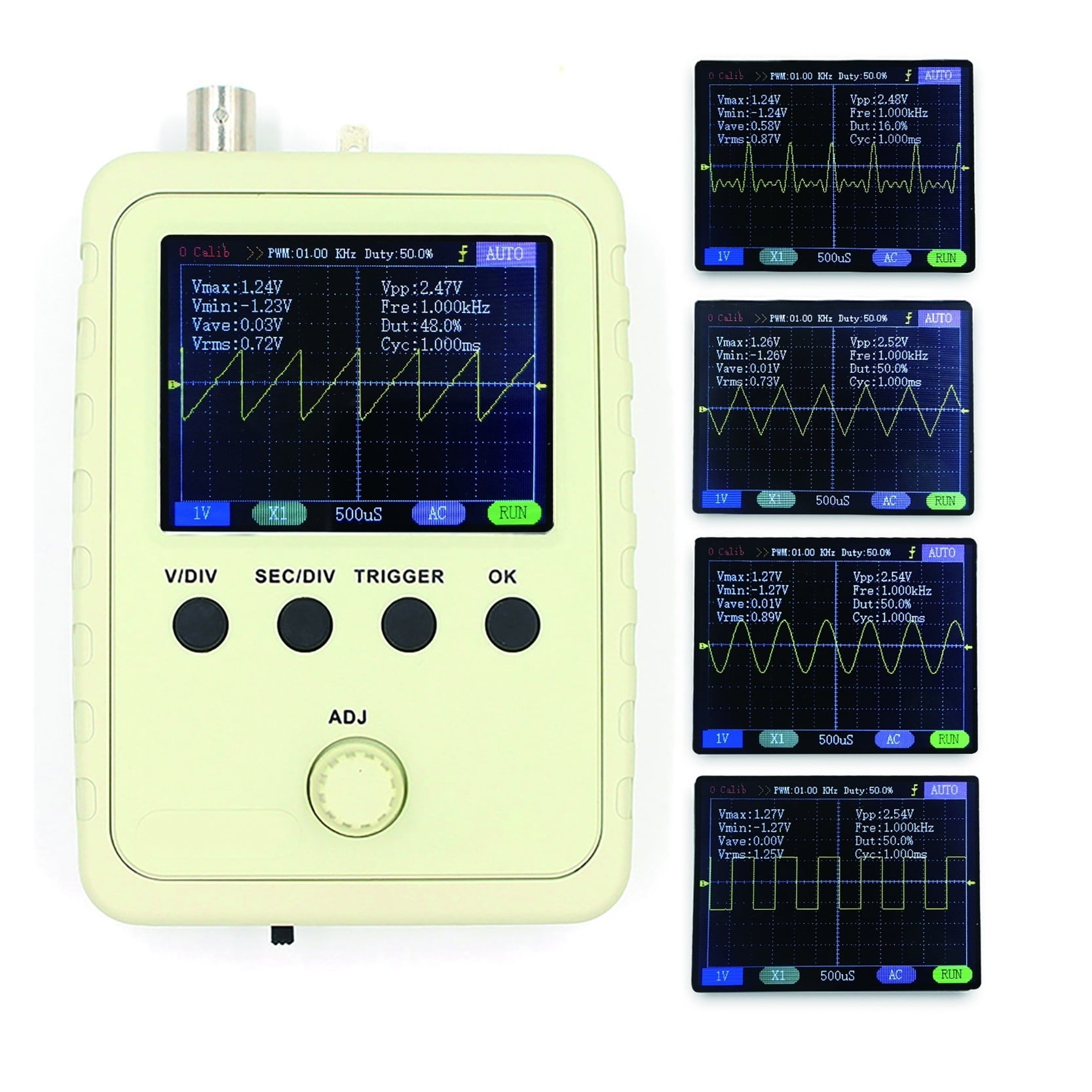

Digital Handheld Pocket Oscilloscope Kit 1MSa/s 200KHz Analog Bandwidth Support 80KHz PWM And Firmware Update ,Professional Designed

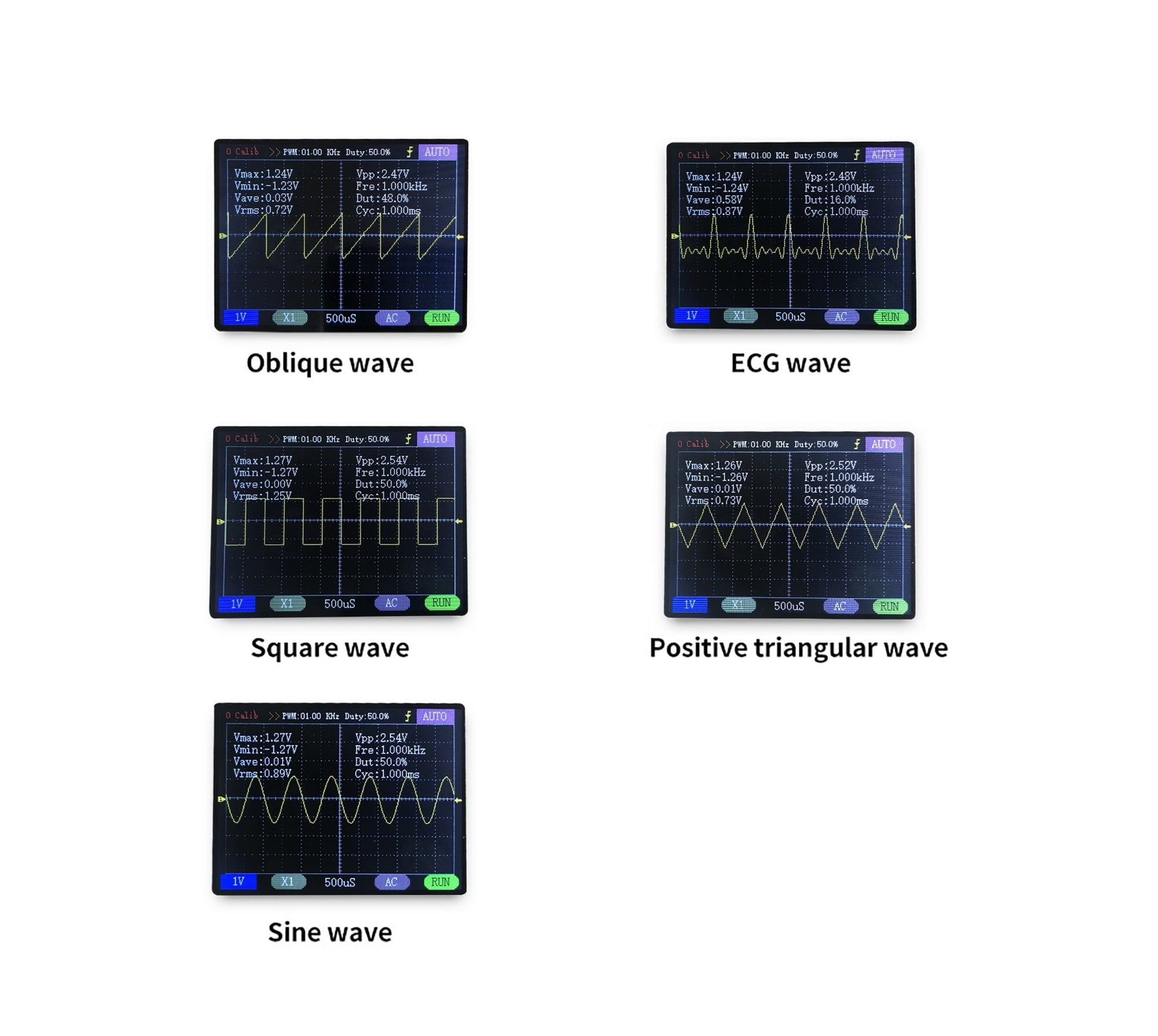

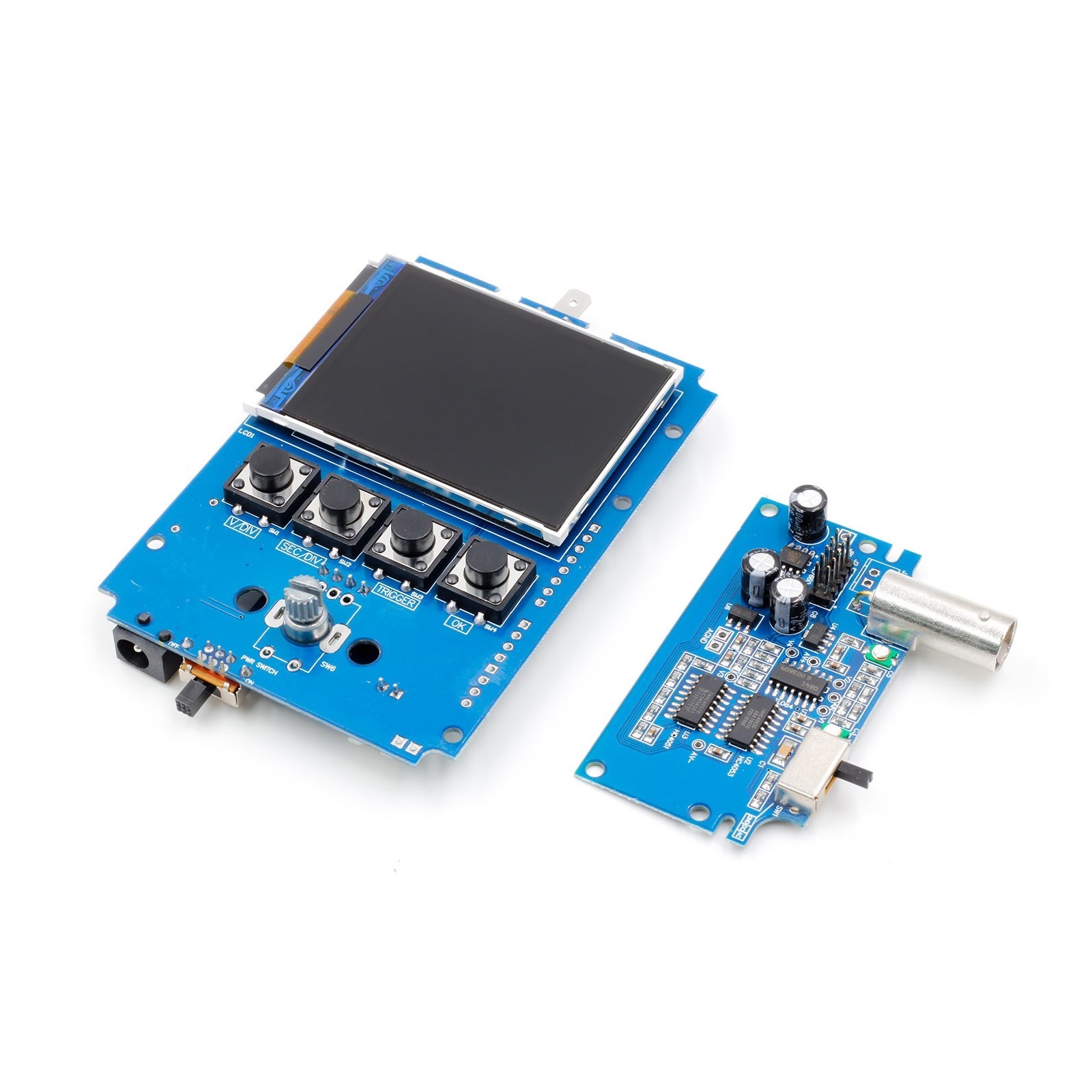

<p>Features:</p><p>With waveform parameter digital display, including frequency, period, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values.</p><p>Short-circuit and open-circuit detection: can help the user find out the soldering error.</p><p>TFT controller recognition function.</p><p>The has been soldered, more suitable for electronic beginner.</p><p></p><p>Specifications:</p><p>Maximum Real-time Sampling Rate: 1MSa/s</p><p>Analog Bandwidth: 0-200KHz</p><p>Sensitivity Range: 5mV/div-20mV/idv</p><p>Maximum Input Voltage: 50Vpk (1X probe)</p><p>Input Impedance: 1M ohms/20pF</p><p>Accuracy: 12 Bits</p><p>Record Length: 1024 points</p><p>Coupling Modes: DC / AC / GND</p><p>Time Base Range: 500s/Div - 10us / Div</p><p>Trigger Modes: Auto, Normal, and Single</p><p>Trigger Position: Center of Buffer</p><p>Supply Voltage: DC 9V(8-10V)</p><p>Current Consumption:~120mA @ 9V</p><p>Main Board Size: 94 * 65mm / 3.7 * 2.56in</p><p>Analog Board Size: 65 * 47mm / 2.56 * 1.85in</p><p>Screen Size: 52 * 40mm / 2 * 1.57in</p><p></p><p>Pocket oscilloscope kit, Oscilloscopes, Electronic Measuring Instruments, Measurement &amp; Analysis Instruments</p><p>Related Products: </p><p>oscilloscope, </p><p>portable oscilloscope, </p><p>automotive oscilloscope, </p><p>oscilloscope automotive, </p><p>lab oscilloscopes, </p><p>osciloscopio, </p><p>osciloscopio automotriz, </p><p>handheld oscilloscope, </p><p>digital oscilloscope, </p><p>usb oscilloscope</p>

• Include a 2.4-inch color TFT display screen.
• Used for secondary development on the basis of this kit, for example, it can be changed to Millivoltmeter, data loggers.
• With Auto/Normal/Single trigger modes, easy to capture the moment waveform.
• Available rising or falling edge trigger.
• Observable previous waveform before trigger(negative delay).
