433MHz Wireless Digital Radio E95-DTU(433C30-485) 30dbm 10KM Modbus Watchdog Din Rail Unlimited High Speed Relay Networking

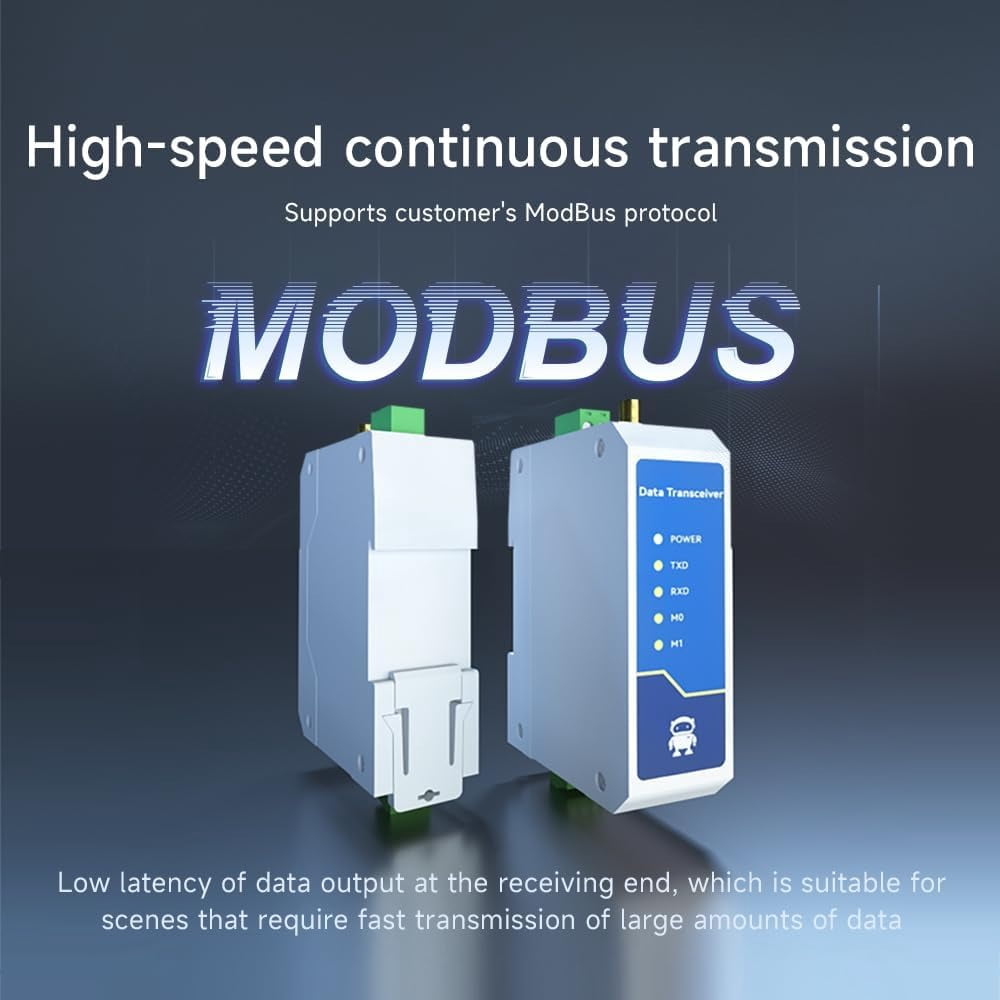

Product DescriptionE95-DTU(433C30-485)-V2.0 is a wireless digital 433M transmission module with continuous transmission,<br>built-in high performance microcontroller and wireless transceiver chip, operates in 410 to 441MHz band (standard 433MHz), transmission power 30dBm. The main function is that the module can perform continuous uninterrupted transmission at various serial port baud rates in continuous transmission mode, and the delay of data output at the receiver side is small, which is suitable for the need of high-speed transmission of large amounts of data.<br>Wireless digital transmission via radio as a communication medium and via optical fiber, microwave and open wire has a certain scope of application: it provides some special conditions in the dedicated network of real-time monitoring signals, reliable data transmission, has a low cost, easy installation and maintenance, strong ability to bypass the shot, the network structure is flexible, the range of the characteristics of long distance, suitable for the point of much more dispersed, geographically complex and other occasions, can be combined with PLC, RTU, rain gauge, level gauge, etc., and can be used to transmit the data to and from the network.<br>It can be connected to PLC, RTU, rain gauge, level gauge and other data terminals.

• General mode to support automatic relay networking, multi-level relay for ultra-long distance communication, same area to run multiple networks at the same time;Simple and efficient power supply design, support for power supply setter or pressure line mode, support for8 to 28V power supply;
• Power reverse connection protection, over the connection protection, antenna over-voltage protection and other multiple protection functions, greatly increases the reliability of the radio; Powerful software functions, all parameters can be set by programming: such as power, frequency, air rate, address ID, etc.; Ultra-low power consumption, low power consumption. Power consumption, 12V power supply watchdog current is only 16mA;Support 0.5k～470kbps data transmission rate;

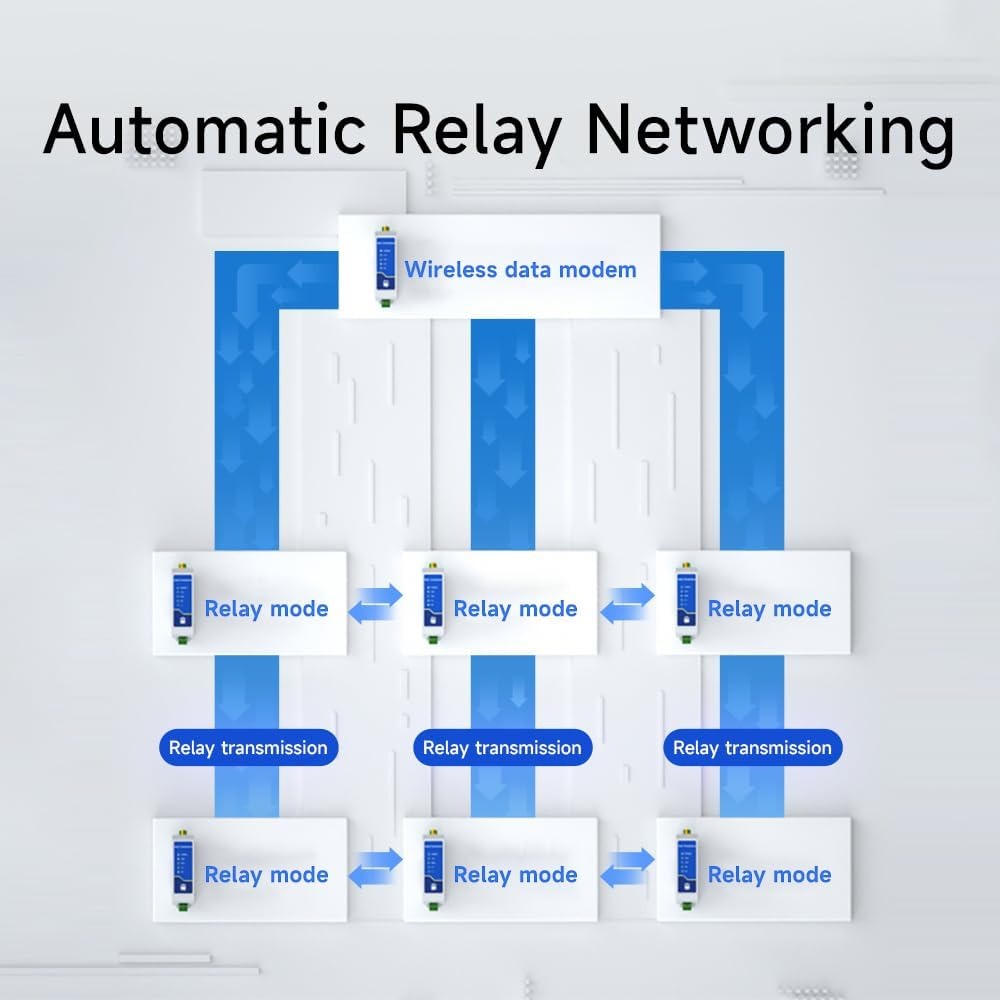

• E95-DTU (433C30-485)-V2.0 has built-in PA+LNA+SAW, and the communication distance can reach 10km under ideal conditions,RSSI signal strength indication function to evaluate signal quality, improve communication network and range. General mode to support automatic relay networking, multi-level relay for ultra-long distance communication, the same area to run multiple networks at the same time;

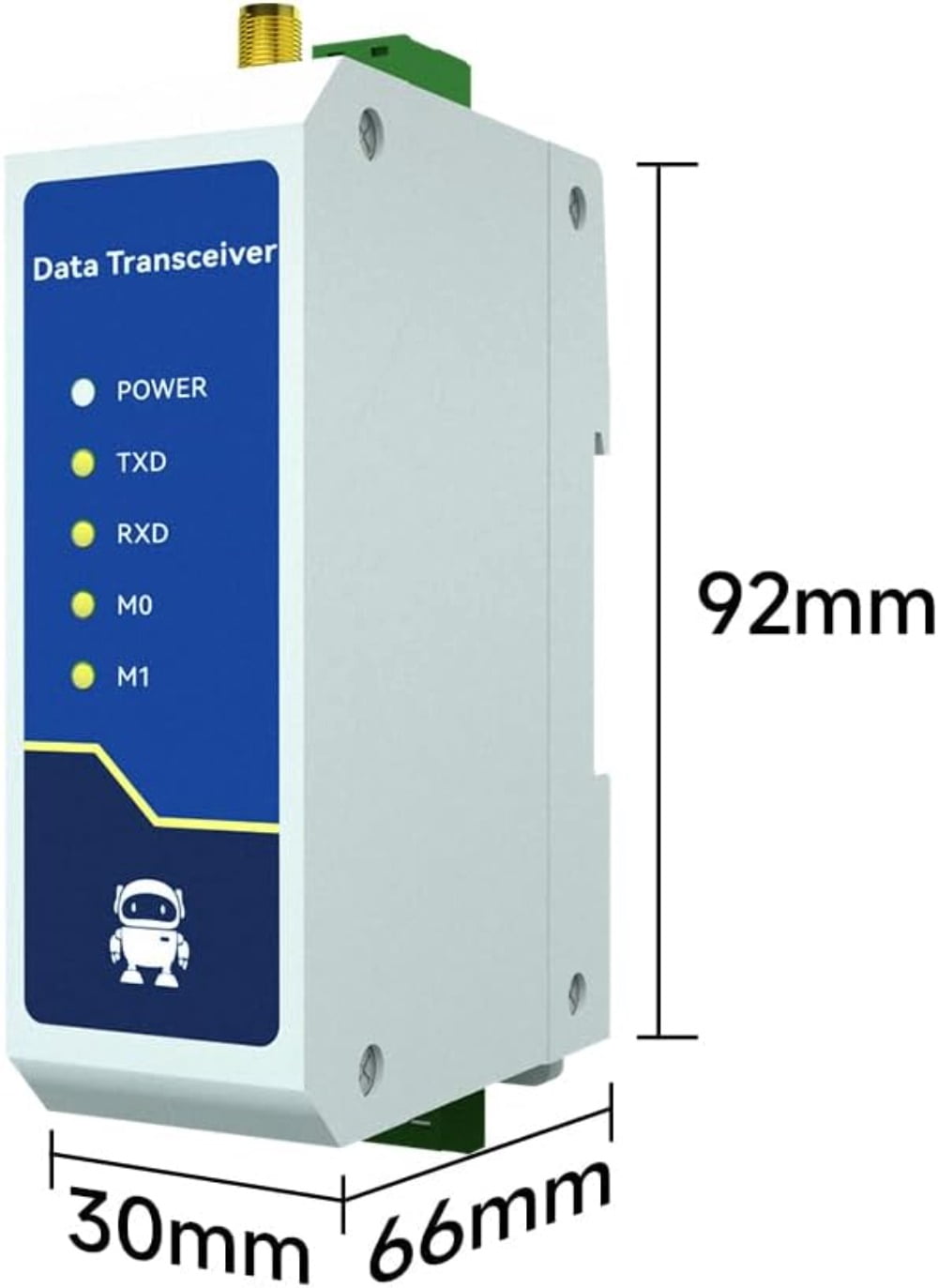

• Simple and efficient power supply design, support for power supply setter or pressure line mode, support for 8-28V power supply;Temperature compensation circuit, frequency stability better than ±1.5PPM; Full aluminium alloy shell, compact size, easy to install, good heat dissipation;
• Ultra-low power consumption, 12V power supply watchdog current is only 16mA; Built-in watchdog, and precise time layout, once an exception occurs, the radio will restart automatically, and can continue to work in accordance with the previous parameter settings; Support 0.5k～470kbps data transmission rate; Powerful software functions, all parameters can be set by programming: such as power, frequency, air rate, address ID
